PARAMETER | VALUE |
Operating Voltage | 24VAC/DC, 230VAC |
Operating Frequency | 50 / 60 Hz |
Operating Power | <6VA |
Operating Temperature | -20°C…..55°C |
Weight | <100Gr |
Time Range | 0.1 seconds – 99min |

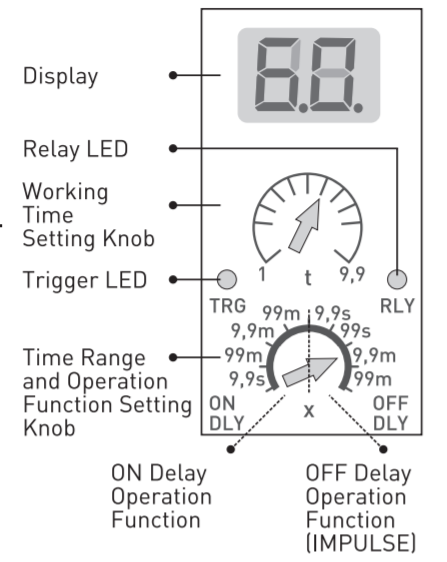

Display | 2 LEDS |
Contact | 1NO+1NC |
5A/250VAC | |
Protection Class | IP20 |
Connection Type | Terminal Connection |
Cable Diameter | Max2.5mm² |
Mounting | DIN Rail Mounting |
Working Altitude | <2000 meter |
