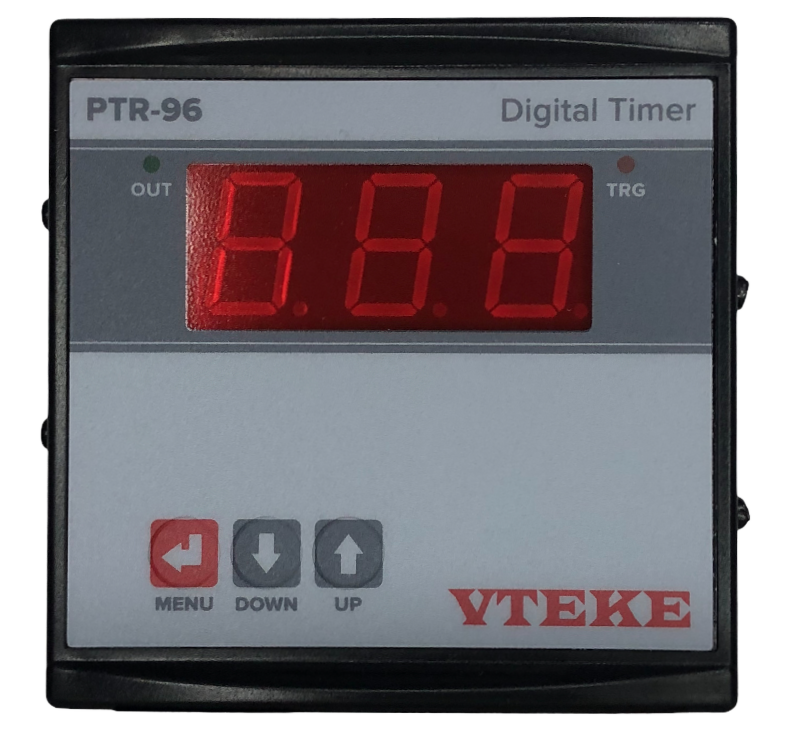

PTR-XX triggered ON Delay and OFF Delay delay digital timer is designed to be used wherever time dependent control is required.
| Parameter | Measured Values |
| Operating Voltage (A1-A2) | 160-240V AC 50/60Hz |
| Operating Voltage (A2-A3) | 24V AC/DC (A2 (-), A3 (+)) |
| Trigger Voltage (TRG) | 24V-240V |
| Operating Power | <6VA |
| Operating Temperature | -20°C ….. +55°C |
| Operating Time Range | 0.1 sec. - 999 min |
| Display | 1×3 LED Display, 2x LEDs |
| Connection Type | Mounting on the front panel cover |
| Weight | <250gr |
| Contact | 5A 250V AC Resistive Load |
| Operating Altitude | <2000m |
| Cable Diameter | 2.5mm2 |
